Welding by automatic submarged arc welding technology, the dropside trailers has beautiful outside and hard texture.
By using 75mm thick center pin, the stability of the TITAN suspension system is improved. The suspension performance during dropside trailers' driving is also improved, and thus the stability and comfort of the 3 Axle 60 Ton Dropside Trailers is increased.

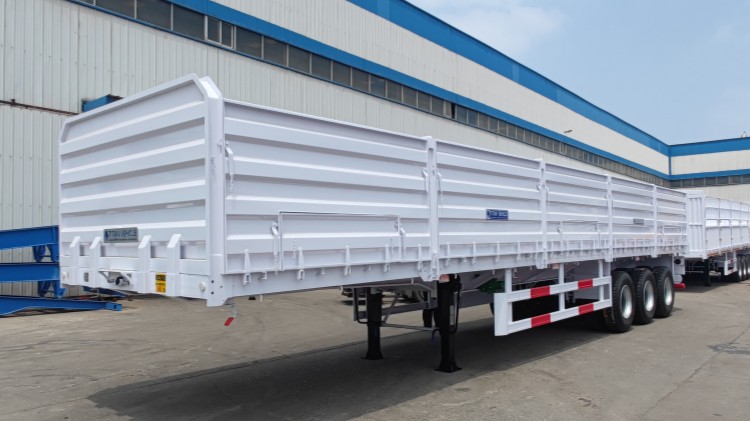

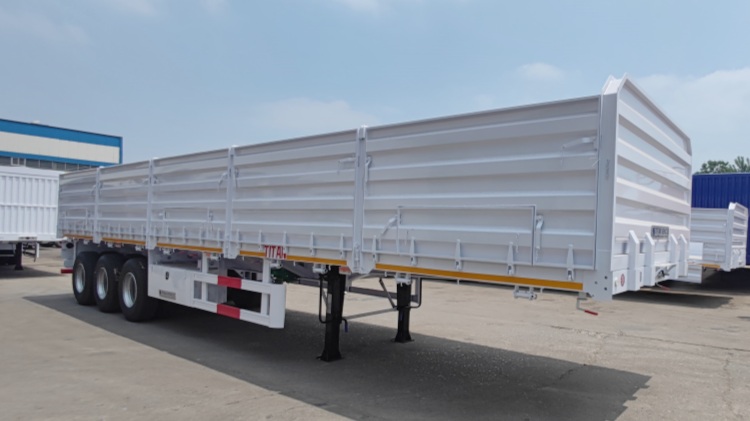

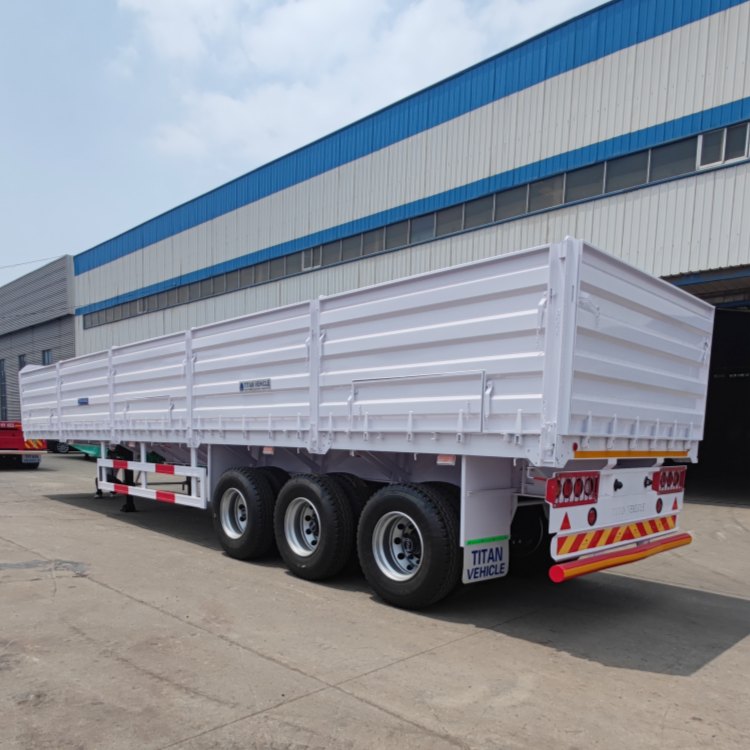

3 Axle 60 Ton Dropside Trailers In DJIBOUTI Port
3 Axle 60 Ton Dropside Trailers In DJIBOUTI Port
The exterior of the goods is protected from damage by the external environment in DJIBOUTI Port.

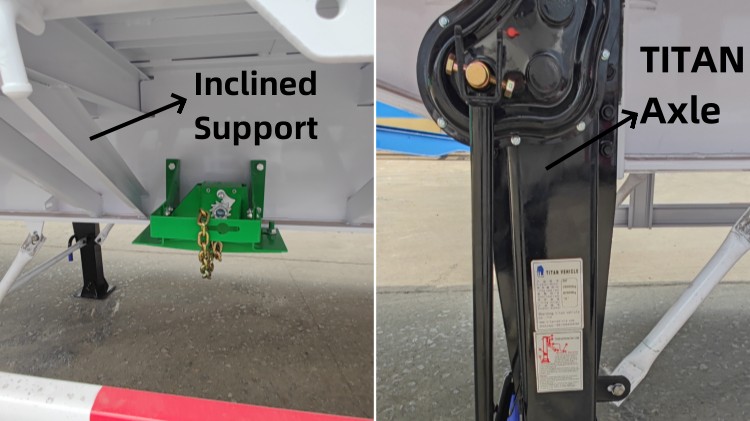

The distance of inclined support is no more than 700mm to support the structure of dropside trailers.

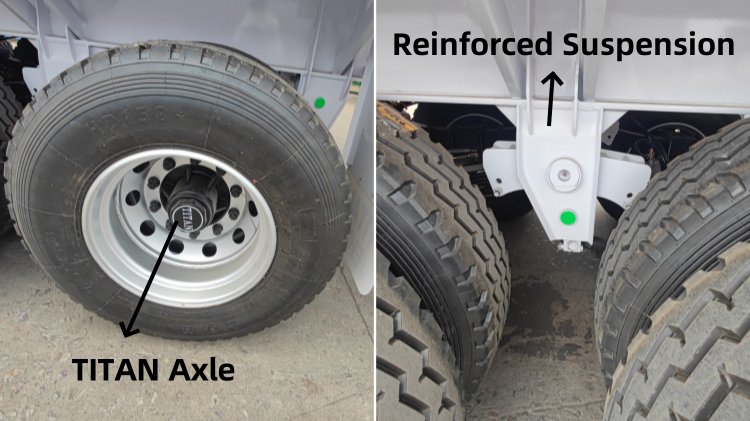

The right and left, front and rear of suspension is strengthen to improve loading stablility of dropside trailers.
Model: 3 Axle 60 Ton Dropside Trailers
Dimension(mm): 12500*2500*800mm
Trailer Sides: 1200mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 16T , TITAN Brand
Landing Gear : TITAN
Tire: 12 units, 12.00R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
1. The 3mm thick patterned bottom plate of dropside trailers not only provides good anti-slip properties, but also has a certain degree of compression resistance.

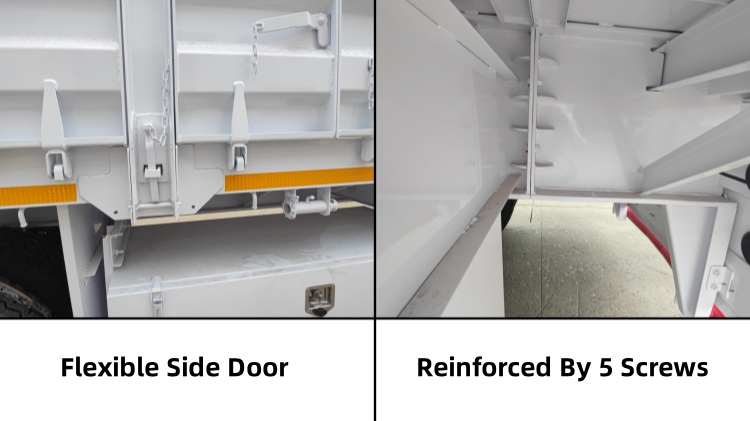

2. Through the side doors of dropside trailers, workers can more easily sort and organize the goods inside the carriage in DJIBOUTI port.
3. Thanks to TITAN 16 ton axle, goods can be transported under a variety of road conditions, including rough roads or where special terrain needs to be crossed.
4. Polyurethane paint forms a strong surface coating after curing, providing long-term protection with 3 Axle 60 Ton dropside trailers in DJIBOUTI port.
5. TITAN can customize the size of dropside trailers based on your requirement. Such as the length of dropside trailers and the height of its side wall.
If you are interested in any trailer, it's kind of you to leave us messages. TITAN will help you to find a suitable one in competitive price.
