The V-shaped tank of a bulk cement tank trailerusually has a larger volume. It reduces the number of transportation times in Djibouti. The low center of gravity of the bulk cement tank trailer reduces the risk of rollover during transportation. The sealing design of the bulk cement tank trailer can effectively prevent dust from being raised during transportation. The transported materials include cement, lime, fertilizer and other powdered objects. So the bulk cement tank trailer owns a wide range of applications in Djibouti.

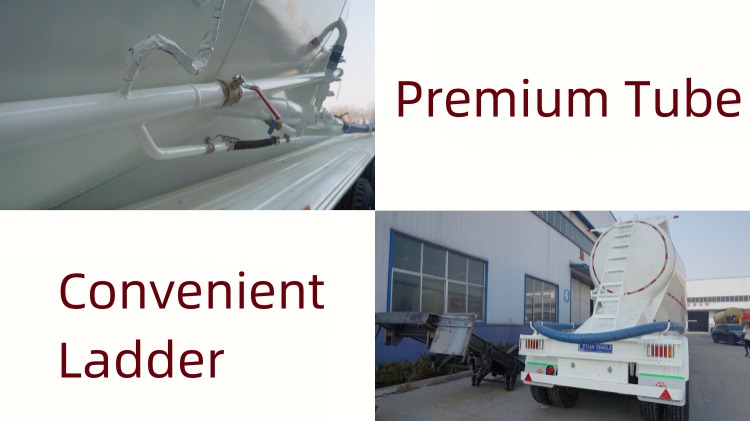

Optimization design of variable diameter discharge tube. The optimized design can decrease the energy consumption of the cement tank trailer.
The optimized variable diameter design helps to reduce the amount of dust that can result from excessive airflow. This is for environmental protection and for operators' health. Gradually varying the diameter of the discharge tube can make the airflow transition smooth. The variable diameter part can decrease the air resistance and increase the fluidity of the material. The smooth surface of the discharge tube can reduce the friction. The optimized variable diameter design reduces the eddy current and impact in the flow. It also protects the discharge device and the pipeline of bulk cement tank trailer.

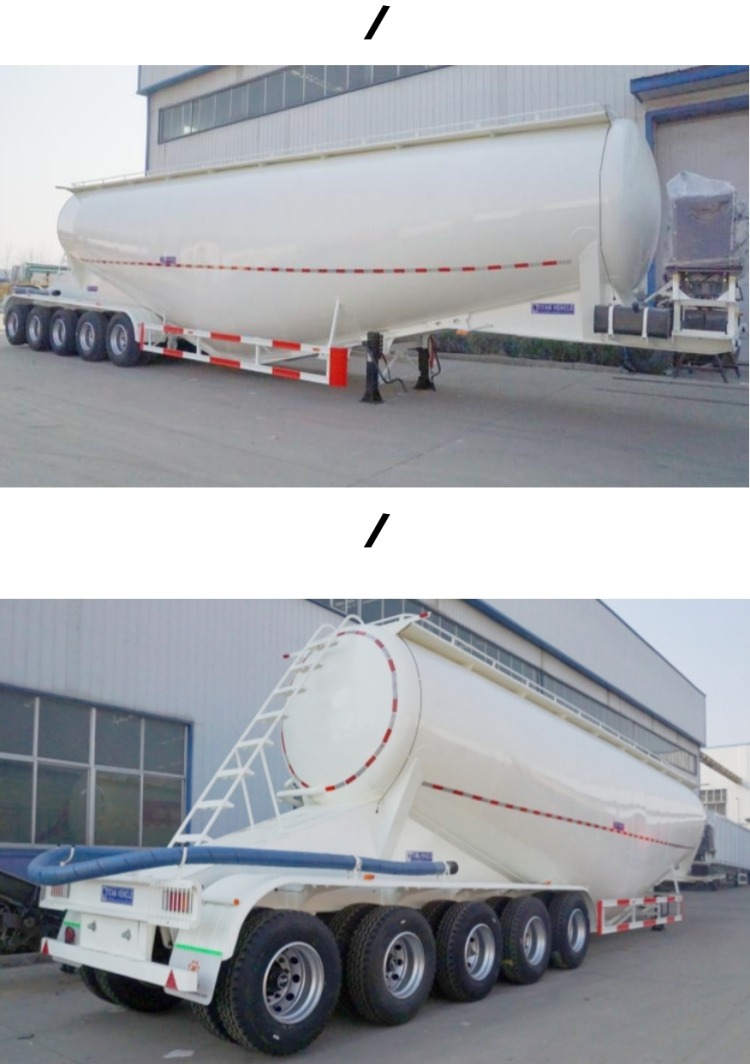

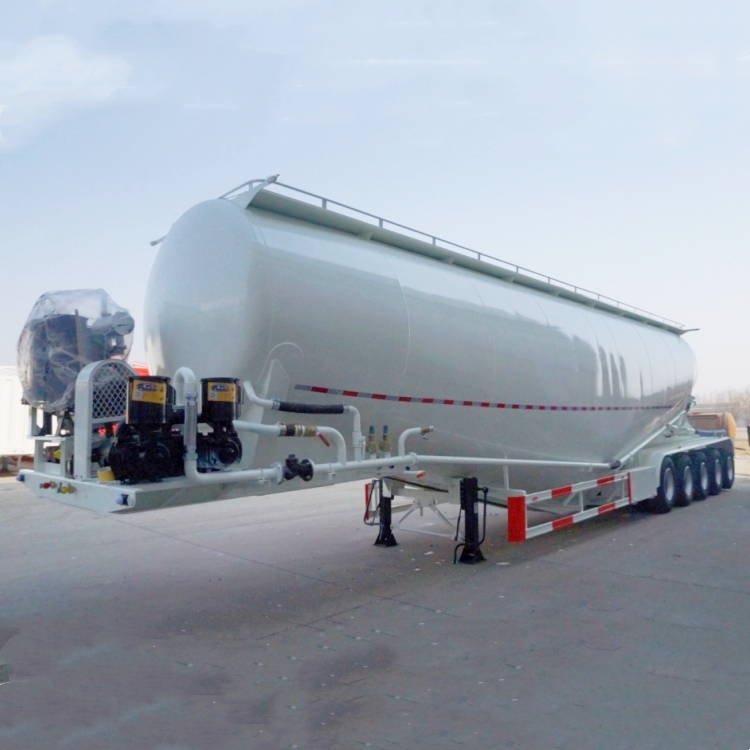

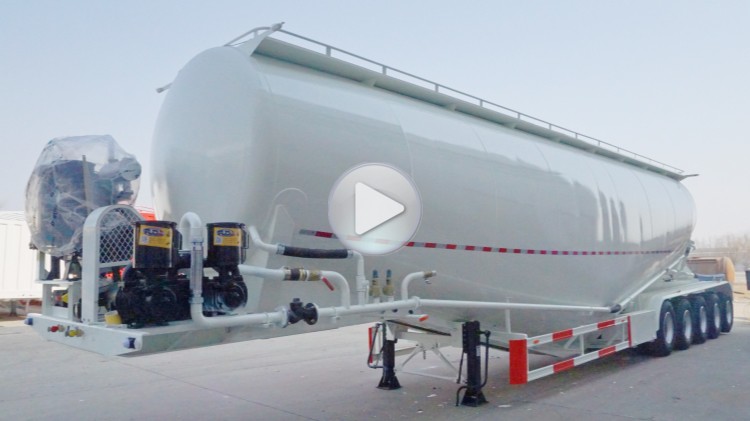

5 Axle 50 CBM Bulk Cement Tank Trailer in Djibouti
5 Axle 50 CBM Bulk Cement Tank Trailer in Djibouti
5 Axle 50 CBM Bulk Cement Tank Trailer in Djibouti
5 Axle 50 CBM Bulk Cement Tank Trailer in Djibouti
5 Axle 50 CBM Bulk Cement Tank Trailer in Djibouti
Total Volume (m3): 60CBM
Tanker Body Material: 5mm or 6mm/ high strength wear-resistance steel
Diesel Engine: WEICHAI 4105 Brand
Compressor: BOHAI, FUDA 12m3 or other brands
Manhole Cover: Carbon steel or Aluminum 500mm(Diameter)
Discharging Valve: Diameter is 3 or 4 inch
Main Beams: Welded design, High Strength Steel
Axle: 5 axles, 16 ton
Suspension: Mechanical suspension

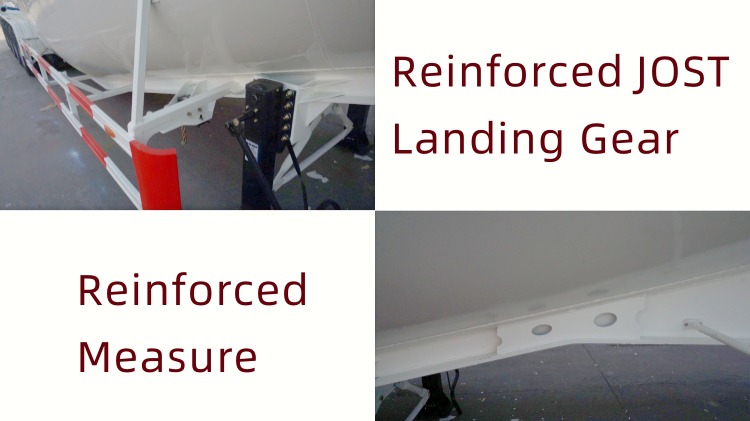

Landing Gear: JOST
1. The 5 mm thick tank material can be used to avoid the deformation and damage due to the dynamic load. Thicker bulk cement tank trailers can withstand higher internal pressures. The bulk cement tank trailer provides physical protection to prevent dust from leaking due to impact or external impact.
2. Bottom check hole. Checking the bottom regularly can detect potential problems early. For example, leakage, corrosion, or mechanical failure. The easily accessible design allows for rapid detection and correction of problems. Check holes facilitate inspection and maintenance of lower parts.

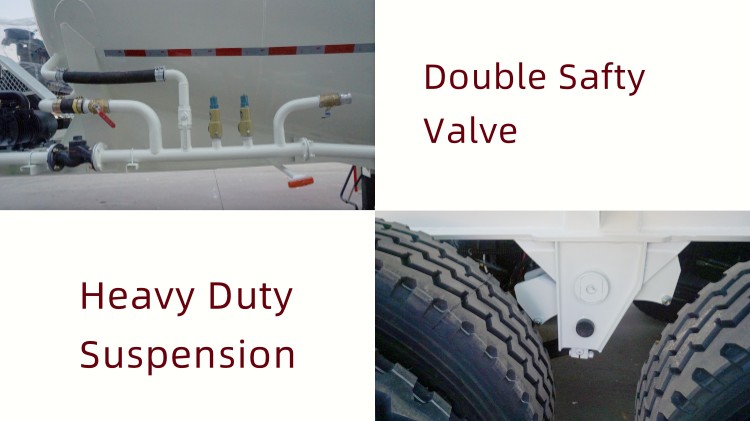

3. The double safety valve can also keep the bulk cement tank trailer airtight under unusual circumstances. If one of them fails, the other one will continue to work. The double safety valve is designed so that they can be used as a backup. It decreases the risk of accidents. The system has high adaptability and can deal with different powder materials and transport conditions. Through the effective control of the pressure inside the tank and the air tight, the safety of the tanker, the cargo and the people is guaranteed. The double safety valve system of bulk cement tank trailer provides a powerful security protection for customers.

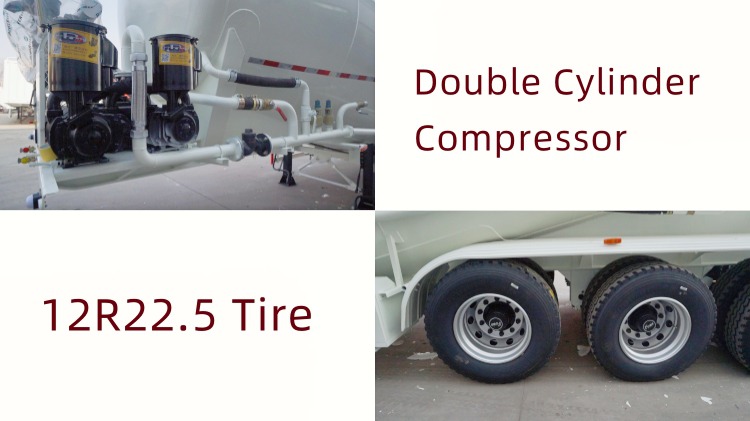

4. In the process of loading, the air is forced into the bulk cement tank trailer by the compressor. And the powder is transferred to the bulk cement tank trailer by air flow. In the process of unloading, the unit is in reverse operation, and the material flows out along the air current. Dual cylinder design of bulk cement tank trailer provides more steady and even air flow. It is advantageous to make sure that the powder material will not be congested in the process of loading and unloading. To increase the compression efficiency of the compressor, a dual cylinder design is used to produce the desired air flow and pressure. Compared with the single cylinder compressor, the operation of the double-cylinder compressor is more smooth. The double-cylinder compressor is simple in design, easy maintenance and maintenance. In the normal operation, the malfunction and the down time of the bulk cement tank trailer are decreased.
5. To reduce the centre of mass of the vehicle, V tank improves the stability of the entire bulk cement tank trailer. The V-shaped geometry of bulk cement tank trailer provides superior structural strength and stiffness. This is so that it can withstand the pressure and deformation produced in the course of transportation and increase the durability. The V-shaped design can prevent the material from getting stuck or not fully unloaded in the process of unloading by reducing the residual material. The streamlined features make the V-shaped bulk cement tank trailer perform better in terms of wind load and air resistance.
