In the fields of road construction, municipal engineering, etc., TITAN heavy load trailer is oustanding to transport various construction equipment and materials to facilitate on-site operations in Djibouti. The low bed trailers can adapt to different types of cargo, including standard containers, oversized cargo and special cargo, and has strong versatility.
Despite being an extra-large vehicle, TITAN heavy load trailer's design enables it to have high maneuverability and controllability during transportation, and can handle complex roads and turns in Djibouti.
HG60 high-strength materials and scientific design enable the ladder to maintain good stability and anti-deformation ability under load, ensuring that equipment or low bed trailers will not slip or overturn during loading and unloading in Djibouti.
4 Line 8 Axles 150 Tons Heavy Load Low Bed Trailers
4 Line 8 Axles 150 Tons Heavy Load Low Bed Trailers

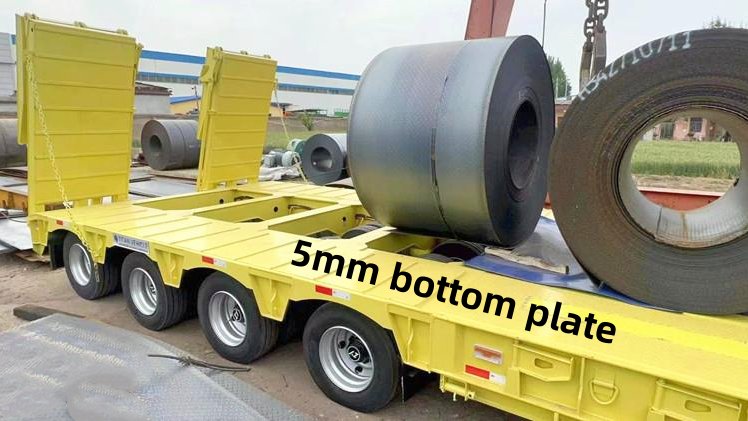

The 5mm bottom plate is painted by ployurethance paint, which is not easy to be scratched by goods.

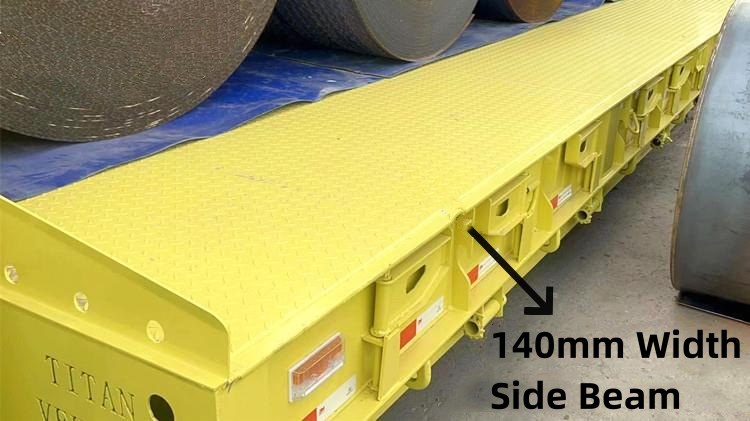

Wide side beams are designed to be strong and durable, able to withstand long-term heavy-load transportation.

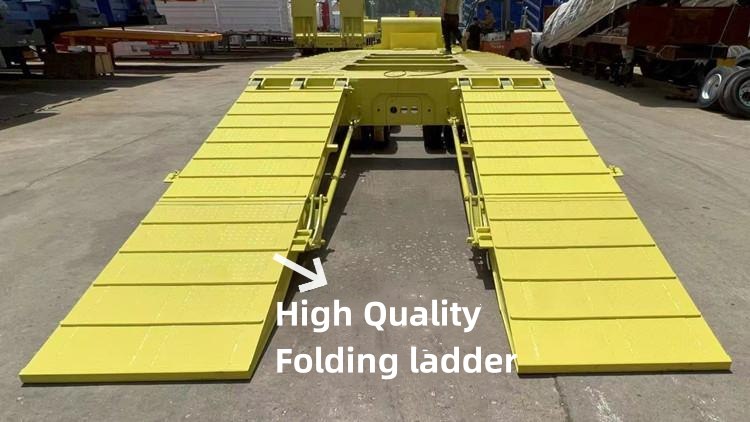

The folding ladder can adjust angles and heights to meet the needs of different low bed trailers and cargoes.
Model: 150 ton heavy haul trailer
Loading capacity: 150 ton

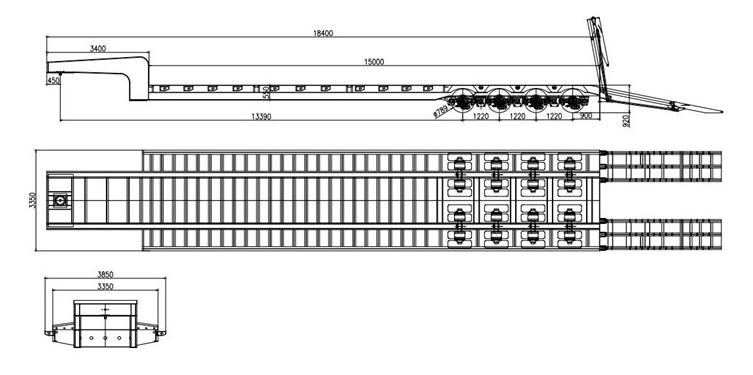

Overall dimension：18400mm * 3500mm *3400mm
Axles：4 line 8 axles
Suspension：Heavy duty mechanical spring suspension
Tire：32 units
King pin：90#
Landing gear：JOST
Brake system: WABCO
Electrical system：24V, LED lights

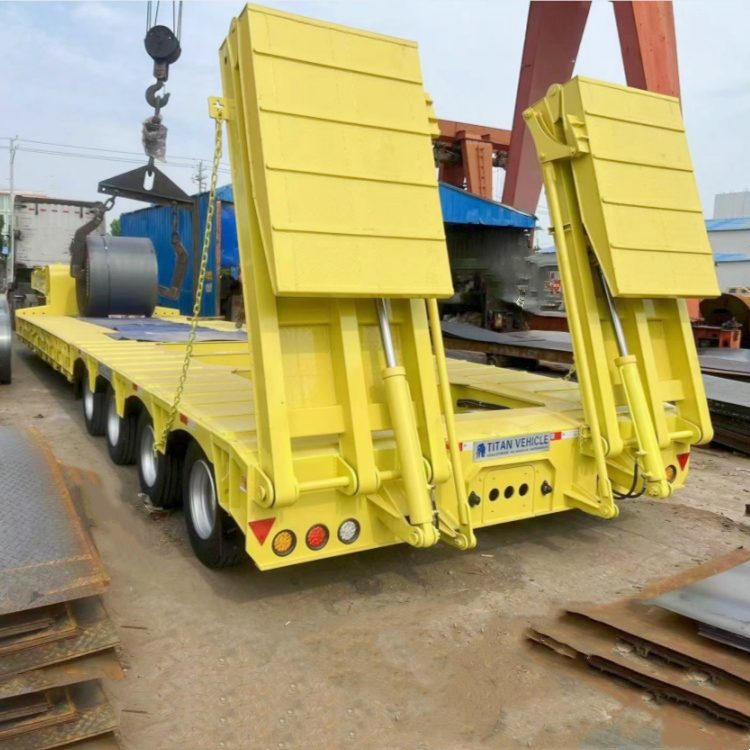

4 Axles 150 Tons Heavy Load Low Bed Trailers In Djibouti
1. The heavy load trailer usually has limited ground clearance. Placing the spare tire on the spare tire rack can effectively save space in the vehicle compartment.
2. The 75mm thick center pin absorbs some of the road vibrations and shocks in Djibouti, lessening the impact of these forces on the structure of low bed trailers.
3. During long-term high-load transportation, good-quality axles can maintain stable performance and are not prone to problems due to temperature changes or high loads.
4. The braking system of heavy load trailer is usually adjusted according to different loads and road conditions in Djibouti to provide a more adaptable braking effect.
5. The six through beams, along with other structures, help balance and distribute the weight of the container and cargo on low bed trailers in Djibouti.

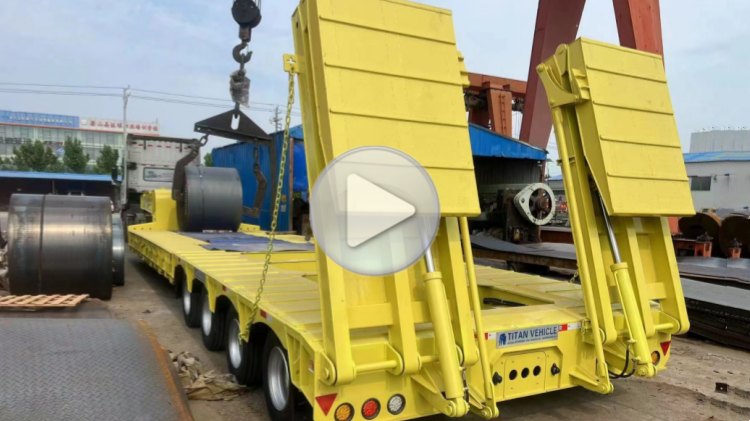

Don't miss the video of heavy load trailer in Djibouti.
