The 4 axle 120Tons trailer low bed is widely used in the field of heavy and large cargo transportation due to its high load-bearing capacity, low center of gravity design, strong and durable structure, and convenient loading and unloading. TITAN low bed lorry is an ideal choice for engineering construction, industrial relocation and large equipment transportation.
For TITAN Trailer low bed lorry, the lower center of gravity when loaded with cargo improves stability during transport and reduces the risk of rollover.
The 14MM thick main beam structure design and enhanced load-bearing capacity make the low-profile vehicle suitable for transporting goods of various types and shapes.

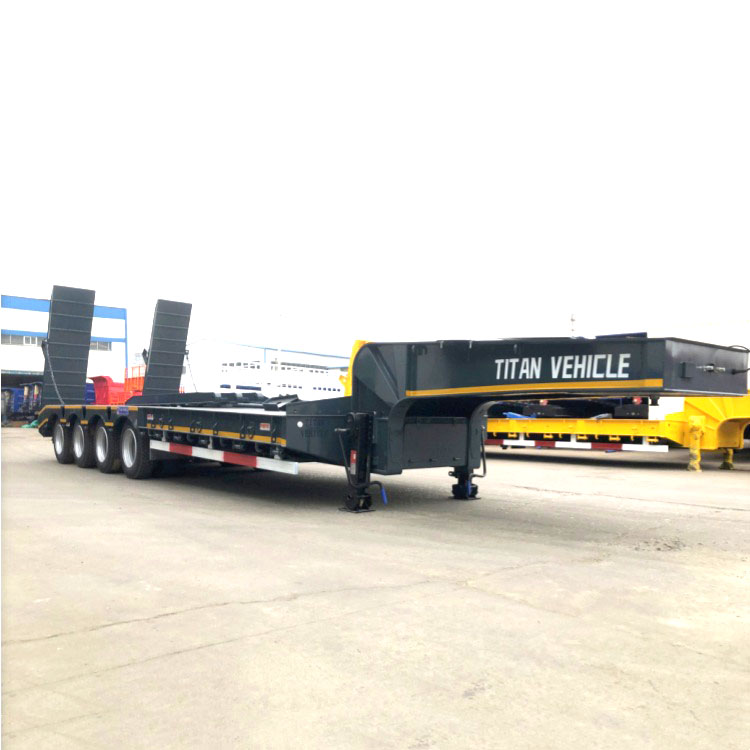

4 Axle 120 Tons Trailer Low Bed Lorry In Djibouti
4 Axle 120 Tons Trailer Low Bed Lorry In Djibouti

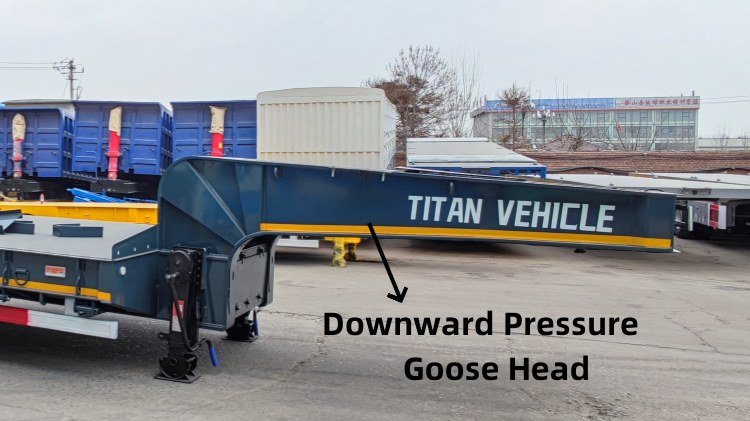

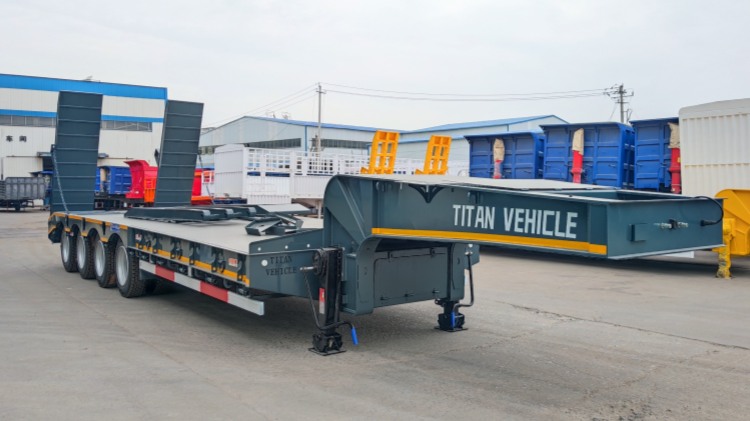

Gooseneck down-type low bed lorry has more advantages when passing through low bridges, tunnels and height-restricted sections.

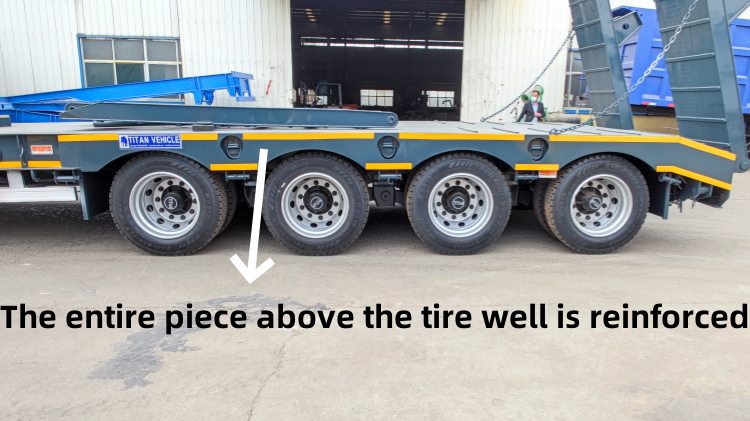

The tire well will not deformed when loading heavy cargos after reinforcing the entire piece above tire well.

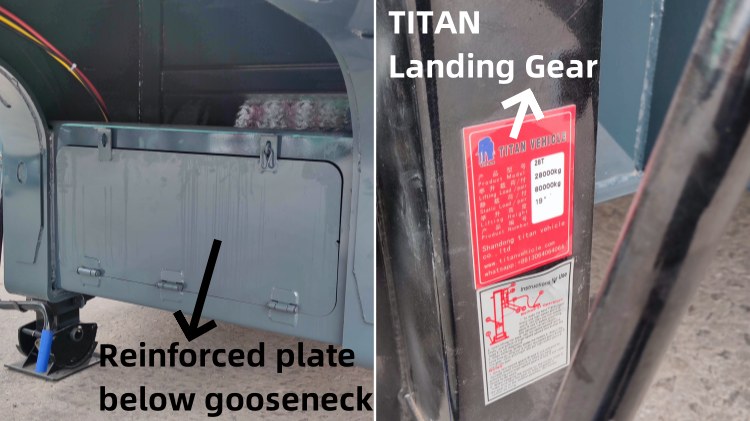

Reinforcing the lower vertical plate can more evenly distribute the pressure of the cargo on the gooseneck part.
Overall dimension: 15800*3000*3400mm
Loading capacity(T): 120T
Axle: 16T, TITAN Brand
Rim: 8.0-20
Tire: 12R/22.5
Suspension: Mechanical suspension
Main beam: Height: 550mm, Upper plate: 22mm, Middle plate: 22mm, Lower plate: 22mm, Material: HG60 steel.
Bottom Platform: 5mm thick checkered plate
Ramp: Hydraulic ladder
Gooseneck: Optional
ABS: Optional
Light: LED light (specially intended for oversea markets)
1. Trailer low bed is equipped with powerful tires and reinforced suspension, which copes with complex roads and uneven terrain, ensuring the stability and safety of goods.
2. TITAN 16 ton axle of low bed lorry is more convenient to operate in some situations that require quick turns or entering and exiting narrow spaces in Djibouti.

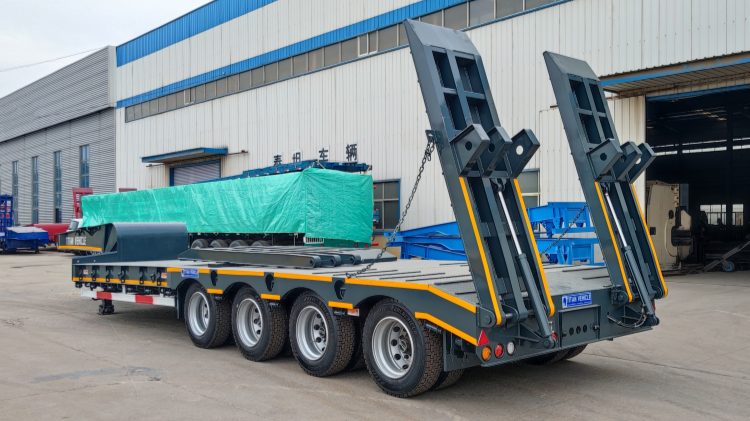

3. Hydraulic ladder of trailer low bed lorry provides operators with comfortable and safe access up and down in Djibouti.
4. The trailer low bed welded with I-beams has a long service life, can resist fatigue and wear in long-term use, and reduce maintenance costs.
5. The 5mm bottom palte of low bed lorry can withstand long-term cargo friction and wear and maintain a long service life.
Please kindly watch the video of trailer low bed lorry.
TITAN have spot goods and professional consultation service if you contact us.
