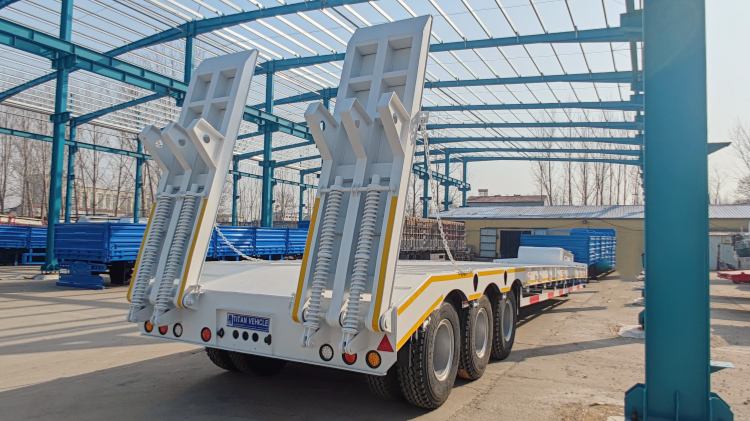

TITAN tri axle semi lowbed trailer is used for the transportation of containers and heavy cargo between ports and terminals. The low-bed design allows for a lower center of gravity when loading cargo, improving stability during transportation and reducing the risk of rollover.
The 16-ton TITAN axle of semi lowbed trailer is more flexible and can be operated more conveniently in situations that require quick turns or entering and exiting narrow spaces.
The suspension system and wheel design of the 3-axle semi lowbed trailer enable it to adapt to different terrains and road conditions in Djibouti, including rugged mountainous areas, urban roads, etc.
Tri Axle 80 Ton Semi Lowbed Trailer For Sale In Djibouti
Tri Axle 80 Ton Semi Lowbed Trailer For Sale In Djibouti

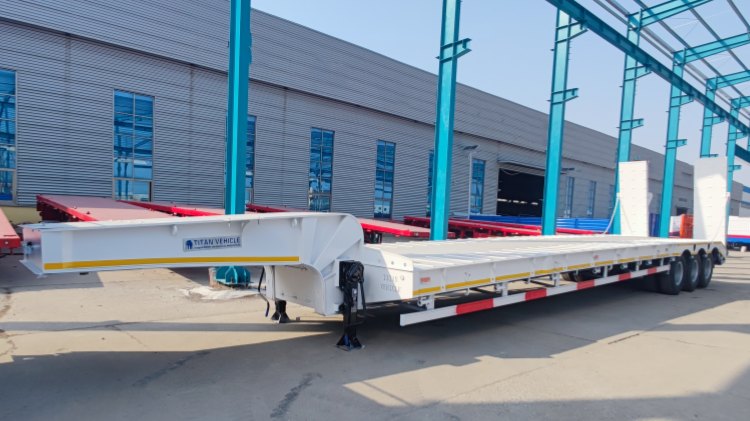

The downward gooseneck design lowers the center of gravity of the cargo and increases the stability of the semi lowbed trailer.

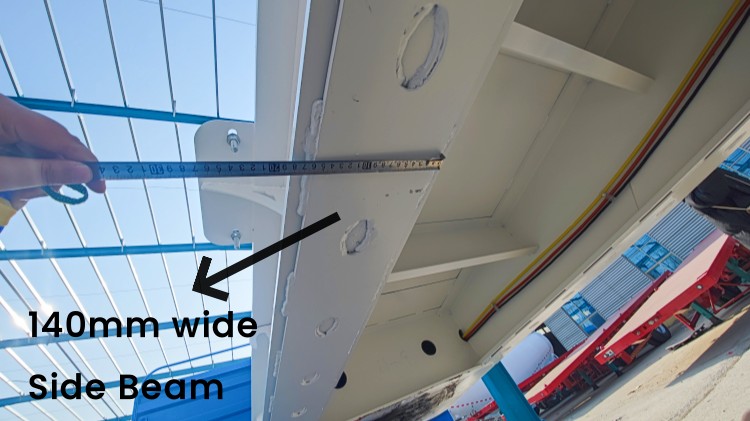

TITAN offers wider side beam made by T700 high strength steel, which improves loading stability.
The left and right, front and rear of suspension is strengthen to distribute and offset more stress and load.
Overall dimension: 13000*3000*3400mm
Loading capacity(T): 80T
Axle: 16T, TITAN Brand
Rim: 8.0-20
Tire: 245/10.00R17.5
Suspension: Mechanical suspension
Main beam: Height: 550mm, Upper plate: 22mm, Middle plate: 22mm, Lower plate: 22mm, Material: HG60 steel.
Bottom Platform: 5mm thick checkered plate

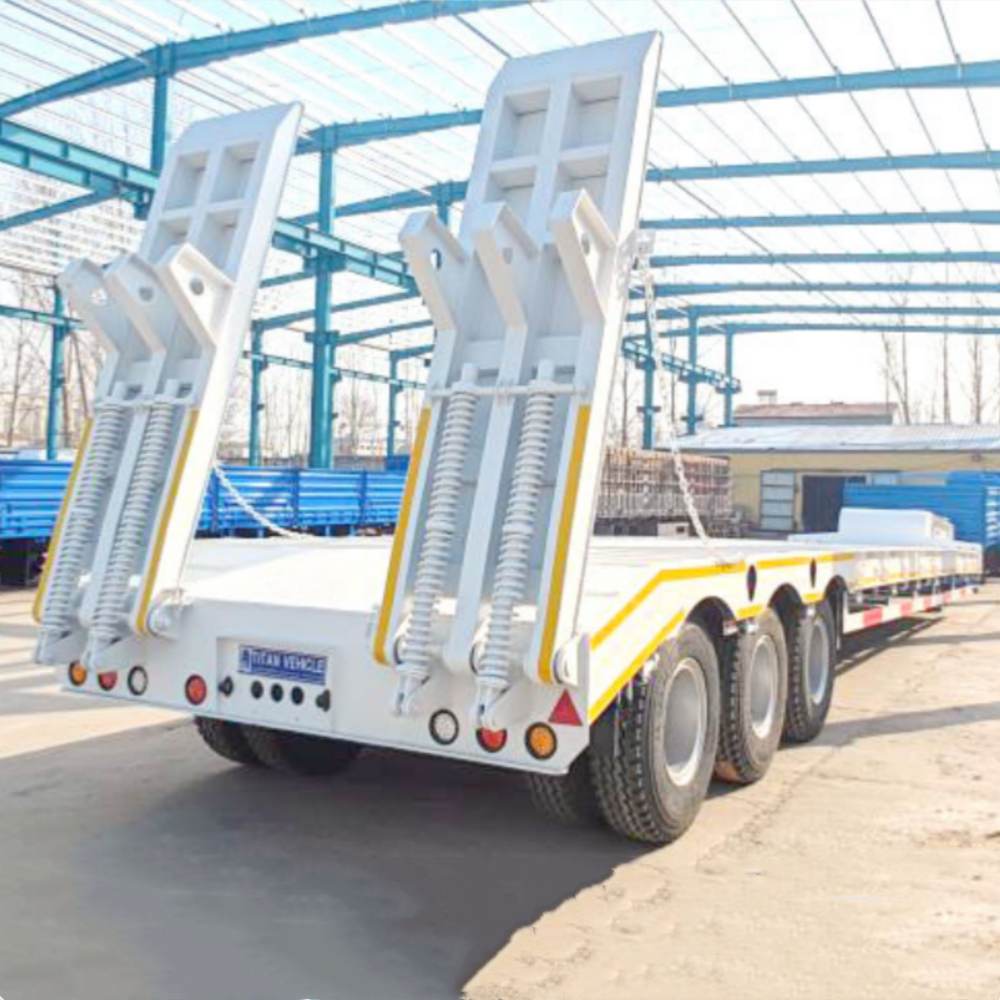

Ramp: Spring ramp
Gooseneck: Optional
ABS: Optional
Light: LED light (specially intended for oversea markets)
1. 5mm bottom plate with pattern can better prevent the accumulation of dirt and debris, and keep the semi lowbed trailer clean and in good condition.

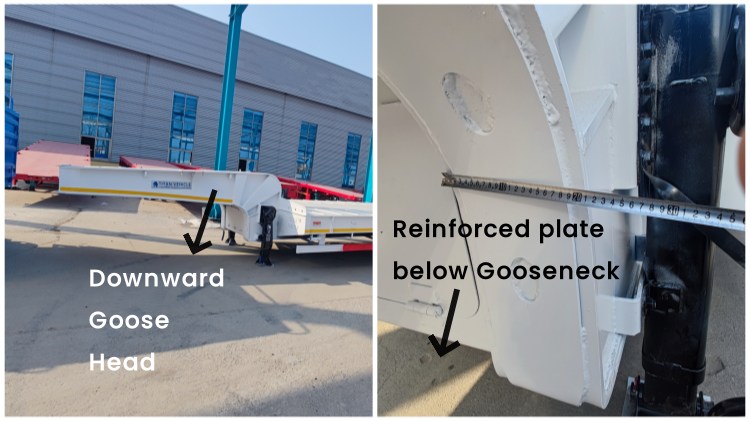

2. Reinforced lower plate below gooseneck can more evenly distribute the pressure of the cargo on the gooseneck part in semi lowbed trailer.
3. The I-shaped cross-section design can reduce the weight of thesemi lowbed trailer while maintaining high strength in Djibouti.

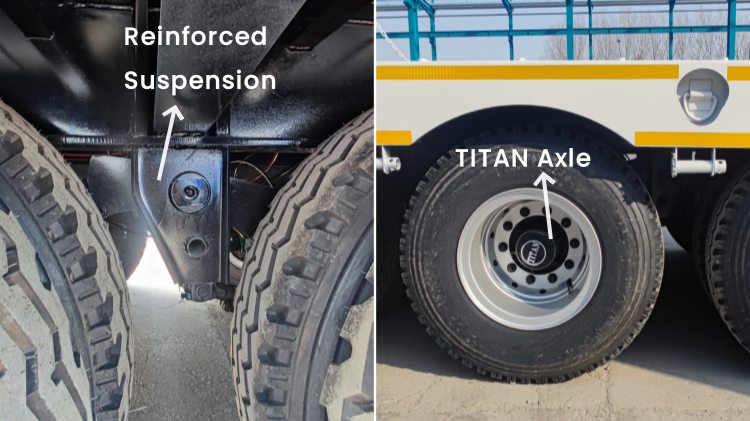

4. The enhanced suspension system enables the semi lowbed trailer to have better controllability and flexibility in various complex road conditions.
5. TITAN14mm thick main beams strengthen the overall structure of the semi lowbed trailer, helping to reduce the occurrence of accidents in Djibouti.

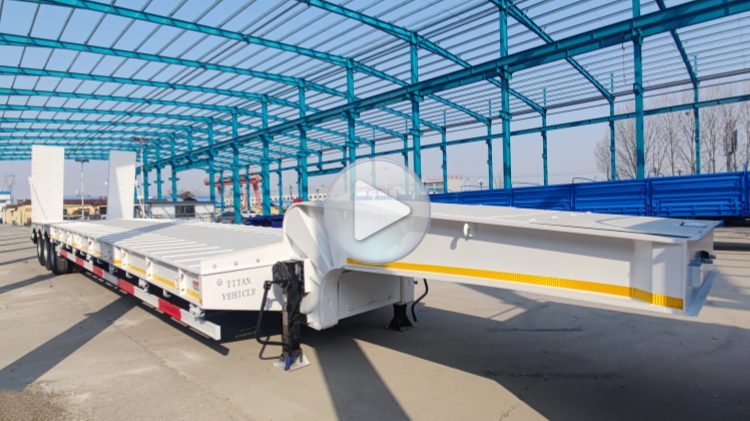

You can feel free to watch the video of semi lowbed trailer.
TITAN is glad to offer you spot goods and competitive price if you contact us.
