The suspension ribs of drop side semi trailer are lengthened. Drop side semi trailer owns a larger 70mm center pin configuration. This enhances the coordination between the front and rear axles and the body. This design makes the drop side semi trailer more stable. The handling of drop side semi trailer under load is greatly enhanced.
1. Customizable sidewalls
The most notable feature of the drop side semi trailer is its adjustable side wall design. This customized side wall makes the user flexible adjustment to different sizes. It is convenient to load all kinds of cargo. Drop side semi trailer is made of Q345 high strength structural steel. The drop side semi trailer is pretty durable. This contributes to better overall structural strength of trailer dropside. It is benificial to the security and stability of trailer dropside.
2. Frame structure
The frame design concept of trailer dropside emphasizes on the improvement of carrying capacity. The trailer dropside employs a 500 mm tall main beam structure. It's reliable to carry a lot of cargo efficiently. The 3 mm thick base plate is easy to strengthen the whole frame structure. Meanwhile, 140 mm wide lateral beam makes the frame more stable. Moreover, the light weight design is applied to decrease the deadweight. Drop side semi trailers have a positive effect on fuel economy. The drop side semi trailer is helpful to transport companies.
3 Axle Drop Side Semi Trailer Dropside in Djibouti
3 Axle Drop Side Semi Trailer Dropside in Djibouti
3 Axle Drop Side Semi Trailer Dropside in Djibouti
3 Axle Drop Side Semi Trailer Dropside in Djibouti
3 Axle Drop Side Semi Trailer Dropside in Djibouti
3 Axle Drop Side Semi Trailer Dropside in Djibouti
Dimension(mm): 12500x2500x3260mm
Trailer Sides: 1200mm
Loading capacity(ton): 60T
Axles: 3 axles, TITAN Brand
Tire: 12 units, 12.00R22.5
Suspension: Mechanical suspension
Main Beam :500mm Height, 8mm Thick, 140mm Width
Side Beam: 160mm Width
King Pin: 70mm
Though Beam: 6 sets

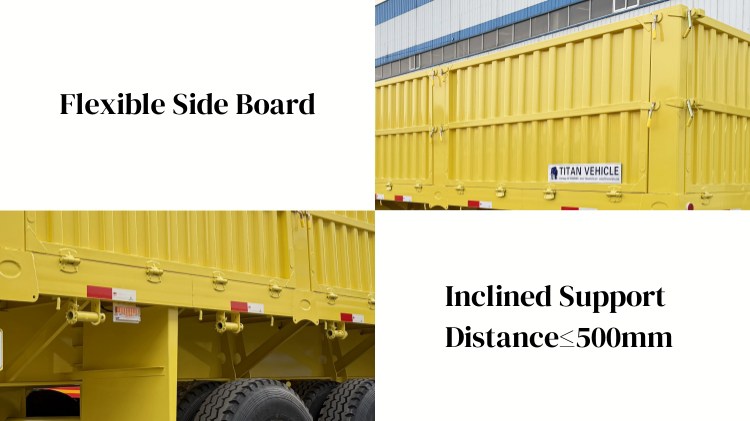

Distance of Inclined Support : ≤500mm
Brake Pad Width: 220mm
Bottom Plate: 3mm Anti-slip PlateDimension(mm): 12500x2500x3260mm
1. Carrying capacity
1.1 Maximum load capacity
The drop side semi trailer is designed to carry a lot of load. Maximum carrying capacity of the drop side semi trailer can be up to 60 tons. Three 16-ton axles provide balance and stability in heavy loads. The trailer dropside enables more efficient completion of transportation tasks.
1.2 Multifunctional use
Drop side semi trailer are designed with flexibility and diversity. It is very suitable for the transportation of a variety of cargoes. For instance, construction materials, farm products, ore, etc. Because of its extensive application, drop side semi trailer has become a vital tool.
2. Comfort and flexibility
2.1 Ease of loading and unloading
Siderails of the drop side semi trailer make it convenient for loading and unloading. Easy removal is especially suitable to a building site or a warehouse.
2.2 Flexibility of loading methods
The drop side semi trailer supports a variety of loading methods. Including lateral loading, top loading, and so on. Customers can select flexible loading solutions based on the particular types of cargo. This flexible way of loading provides more efficient and convenient transport for the enterprise.
3. Safety
3.1 Reinforced safety design
The drop side semi trailer owns side door locks and rope tightening devices. They are helpful to make sure the cargo is safe in transportation. These designs are effective in preventing the cargo from slipping and falling. The drop side semi trailer to decrease the safety hazard of the business.
3.2 Anti-skid design

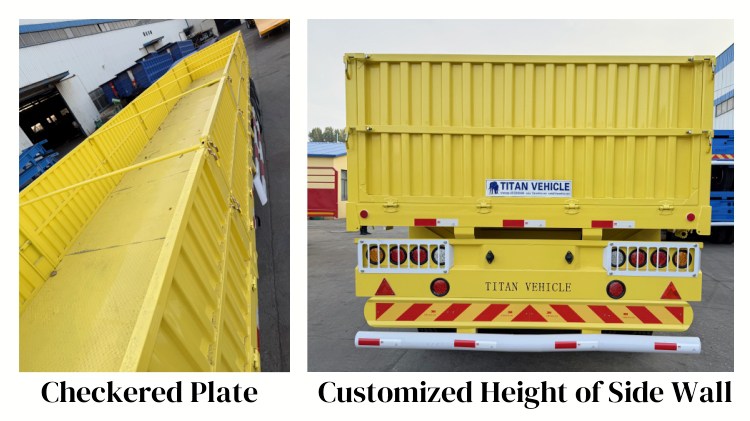

The floor surface of the drop side semi trailer is non-slip. It employs a pattern board as the base plate to increase friction. It is reliable to guarantee the security of transportation. This design is particularly applicable to the shipping of bulk cargo. Trailer dropside is effective in reducing the risk of accidents due to cargo slip.
